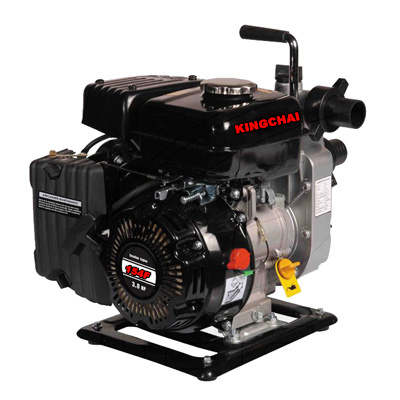

Model: wp15
< Previous | Next >


Type WP15
Outlet Size(mm) 40
Inlet size(mm) 40
Speed (rpm) 3600
Displacement Q.max(m3/h) 21
Lift H.max(m) 20
Suction(m) 7
Engine Model KC154F
Engine Type Forced air-cooled 4-stroke
Bore x Stroke(mm) 54x38
Displacement(cm3) 87
Compression Ratio 7.7:1
Max Power Output(HP/rmp) 2.8/3600
Max Torque(Nm/rpm) 4.2/2800
Start Model Recoil and hand -operated
Air Cleaner semi-dry
Fuel Tank Capacity ( L ) 1.6
Fuel Consumption(g/Kw.h) ≤450
Oil Capacity(L) 1
Packing Dimensions (mm) 450x345x360
N.W/G.W(Kg) 17.5
