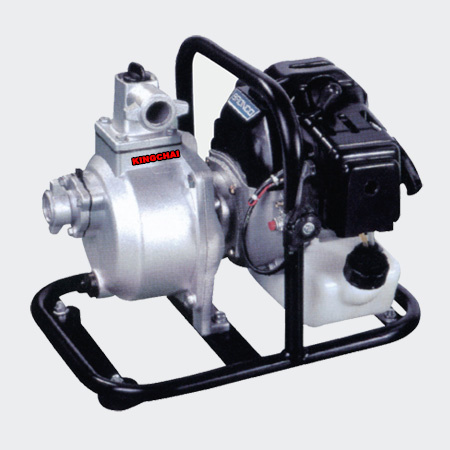

| Model: WP10 |
| Gasoline Water Pump |
Feature:
1.Adopt OHV engines.
2.Close in structure and convenient in operation.
3.Low noise'less oil consumption ,light weight and large discharge.
4.No need power source, safe in using, being the ideal selection of agricultural irrigation and industrial-use water. |
|
< Previous
|
Next >
|
|
|
| |
| |
| Type |
WP10 |
| Outlet Size(mm) |
25 |
| Inlet size(mm) |
25 |
| Speed (rpm) |
6500 |
| Displacement Q.max(m3/h) |
8 |
| Lift H.max(m) |
20 |
| Suction(m) |
7 |
| Engine Model |
KC1E40F-5 |
| Engine Type |
Forced air-cooled 2-stroke |
| Bore x Stroke(mm) |
40x34 |
| Displacement(cm3) |
43 |
| Compression Ratio |
7.7:1 |
| Max Power Output(HP/rmp) |
1.5/6500 |
| Max Torque(Nm/rpm) |
1.8/5000 |
| Start Model |
Recoil and hand -operated |
| Air Cleaner |
semi-dry |
| Fuel Tank Capacity (L) |
1.2 |
| Fuel Consumption(g/Kw.h) |
≤610 |
| Oil Capacity(L) |
1 |
| Packing Dimensions (mm) |
390x300x340 |
| N.W/G.W(Kg) |
10 |
|
 |
|
|
|
