Model: KC2500D

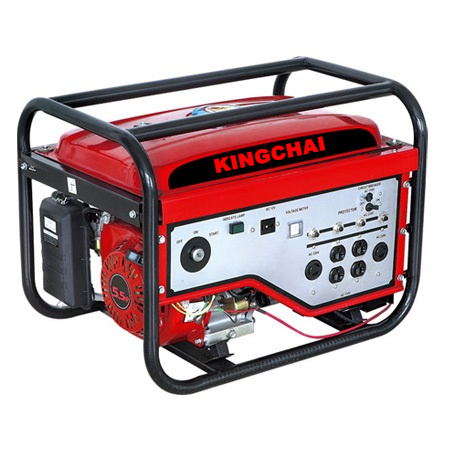

Gasoline generator

< Previous | Next >

2kw-3kw single phase

Specifications	KC2500		KC3000		KC3500
Model	2.0-2.2KW		2.3-2.5KW		2.6-3.0KW
Engine	168F		168F-1		170F
Type	1-cylinder,4-stroke,Air-cooled gasoline engine
Work capacity	163cc		196cc		210cc
Max.output	5.5HP		6.5HP		7.0HP
Ignition system	Non-contact transistor
Starting system	Recoil/electric		Recoil/electric		Recoil/electric
Fuel tank capacity	15L		15L		15L
Continous operating time	11 hours		11 hours		11 hours
Engine oil system capacity	0.6L		0.6L		0.6L
Phase	single phase
Noise	94dB(A)		94dB(A)		94dB(A)
A.C.frequence	50hz	60hz	50hz	60hz	50hz	60hz
Rated Voltage	100V/110V/120V/220V/230V/240V
Max.A.C.output	2.2kW	2.4kW	2.5kW	2.7kW	2.8kW	3.0kW
Rated A.C.output	2.0kW	2.2kW	2.3kW	2.5kW	2.6KW	2.8kW
Size and weight
Overall dimension	605x440x440		605x440x440		605x440x440
Dry weight	38KGS		39KGS		40KGS
Container Quantity	20ft	40hq	20ft	40hq	20ft	40hq
Container Quantity	240sets	595sets	240sets	595sets	240sets	595sets
