Model: KC2500-3

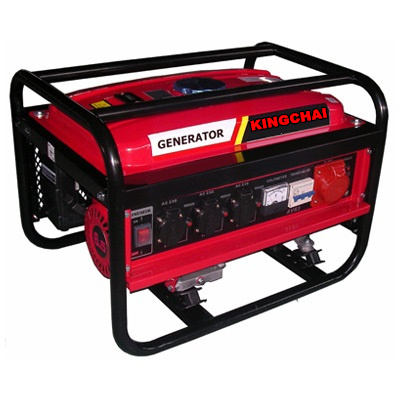

Gasoline Generator
< Previous | Next >


2kw-3kw three phase series
Model 2.0-2.2KW 2.3-2.5KW 2.6-3.0KW
Engine 168F 168F-1 170F
Type 1-cylinder,4-stroke,Air-cooled gasoline engine
Work capacity 163cc 196cc 210cc
Max.output 5.5HP/3600rpm 6.5HP/3600rpm 7.0HP/3600rpm
Ignition system Non-contact transistor
Starting system Recoil/electric  Recoil/electric  Recoil/electric
Fuel tank capacity 15L 15L 15L
Continous operating time 11 hours 11 hours 11 hours
Engine oil system capacity 0.6L 0.6L 0.6L
Phase three phase three phase three phase
Noise 94dB(A) 94dB(A) 94dB(A)
A.C.frequence 50hz
Rated Voltage 3x230V+1x380V
Max.A.C.output 2.2KW 2.5KW 3.0KW
Rated A.C.output 2.0KW 2.3KW 2.6KW
Size and weight
Overall dimension 605x440x440  605x440x440  605x440x440
Dry weight 38KGS 39KGS 40KGS
