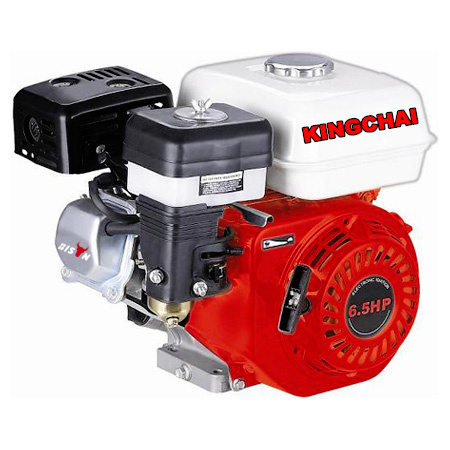

Model: KC168FA
Gasoline Engine
< Previous | Next >


Model KC168FA
Engine Type 1-cylinder;4-stroke;Air-cooled;OHV
Bore x Stroke 68x45(mm)
Volume 196cm3
Compression Ratio 8.5:1
Maximum Power Output (6.5HP)4.8kw
Rated Power Output (5.7HP)4.2KW
Maximum Torque 13.2N.m
Ignition System Transistor magneto
Starting System Recoil/Electric
Engine oil System Capacity 0.6 Litres
Fuel Capacity 3.6 Litres
Min.Fuel Consumption 360g/Kw/h
Power output type 曲轴1:1
The output side state 锥度1:5、1:5333、公制螺纹、英制螺纹、键槽、花键、按图样定制
The output axle steering Left
Air Cleaner Semi-dry:Oil bath;Dual;Si!ent;Cyclone
Dimensionsl(LxWxH) 400x325x340mm
Net Weight 15kg
