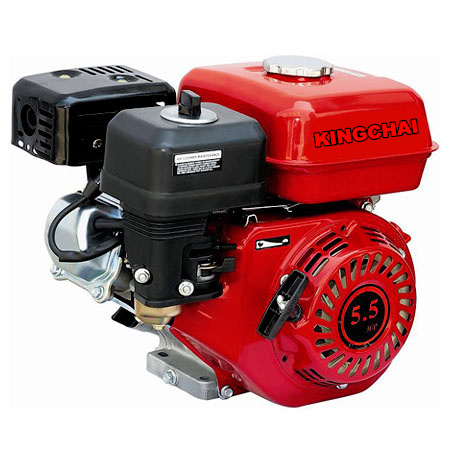

Model: KC168F
Gasoline Engine
< Previous | Next >


Model KC168F
Engine Type 1-cylinder;4-stroke;Air-cooled;OHV
Bore x Stroke 68x45(mm)
Volume 163cm3
Compression Ratio 8.5:1
Maximum Power Output (5.5HP)4.1kw
Rated Power Output (4.8HP)3.5KW
Maximum Torque 10.8N.m
Ignition System Transistor magneto
Starting System Recoil/Electric
Engine oil System Capacity 0.6升 0.6 Litres
Fuel Capacity 3.6升3.6 Litres
Min.Fuel Consumption 360g/Kw/h
Power Output Type 曲轴1:1
The Output Side State 锥度1:5、1:5333、公制螺纹、英制螺纹、键槽、花键、按图样定制
The Output Axle Steering 左(Left)
Air Cleaner Semi-dry:Oil bath;Dual;Si!ent;Cyclone
Dimensionsl(LxWxH) 400x325x340mm
Net Weight 15kg
