Model: kerosene-3inch

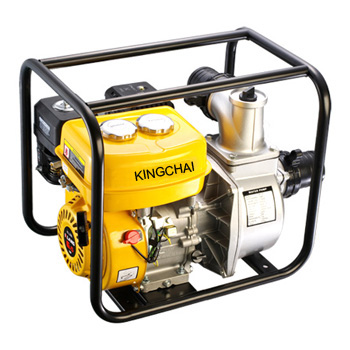

Kerosene Water Pump
< Previous | Next >


Type Kerosene-3inch
Outlet Size(mm) 80
Inlet size(mm) 80
Speed (rpm) 3600
Displacement Q.max(m3/h) 60
Lift H.max(m) 28
Suction(m) 7
Engine Model KC168F
Engine Type Forced air-cooled 4-stroke
Bore x Stroke(mm) 68x45
Displacement(cm3) 163
Compression Ratio 8.5:1
Max Power Output(HP/rmp) 5.5/3600
Max Torque(Nm/rpm) 11/2500
Start Model Recoil and hand -operated
Air Cleaner semi-dry
Fuel Tank Capacity (L) 3.6
Fuel Consumption(g/Kw.h) ≤450
Oil Capacity(L) 0.6
Packing Dimensions (mm) 505x385x460
N.W/G.W(Kg) 25
