Model: wp40

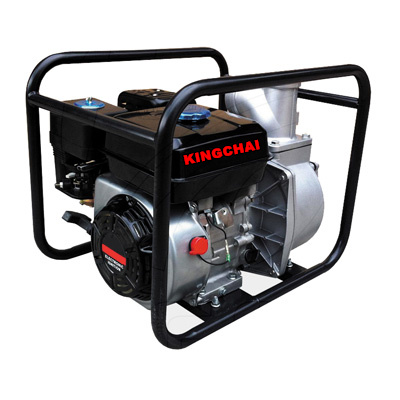

Gasoline Water Pump
< Previous | Next >


Type WP40
Outlet Size(mm) 100
Inlet size(mm) 100
Speed (rpm) 3600
Displacement Q.max(m3/h) 108
Lift H.max(m) 28
Suction(m) 8
Engine Model KC177F
Engine Type Forced air-cooled 4-stroke
Bore x Stroke(mm) 73x58
Displacement(cm3) 242
Compression Ratio 8.2:1
Max Power Output(HP/rmp) 13/3600
Max Torque(Nm/rpm) 17/2500
Start Model Recoil and hand -operated
Air Cleaner semi-dry
Fuel Tank Capacity(L) 6.0
Fuel Consumption(g/Kw.h) ≤392
Oil Capacity(L) 1.1
Packing Dimensions (mm) 620x445x555
N.W/G.W(Kg) 45
