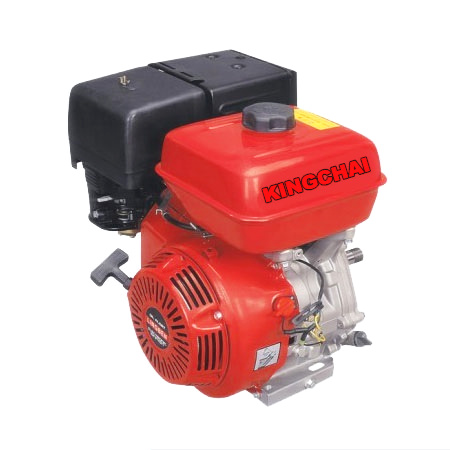

Model: KC173F
Gasoline Engine
< Previous | Next >


Model KC173F
Engine Type 1-cylinder;4-stroke;Air-cooled;OHV
Bore x Stroke 73x58(mm)
Volume 242cm3
Compression Ratio 8.2:1
Maximum Power Output (8.0HP)5.6kw
Rated Power Output (7.2HP)5.3KW
Maximum Torque 16.7N.m
Ignition System Transistor magneto
Starting System Recoil/Electric
Engine oil System Capacity 1.1 Litres
Fuel Capacity 6.5 Litres
Min.Fuel Consumption 325g/Kw/h
Power output type 曲轴1:1
The output side state 锥度1:5、1:5333、公制螺纹、英制螺纹、键槽、花键、按图样定制
The output axle steering 左(Left)
Air Cleaner Semi-dry:Oil bath;Dual;Si!ent;Cyclone
Dimensionsl(LxWxH) 495x420x505mm
Net Weight 25kg
