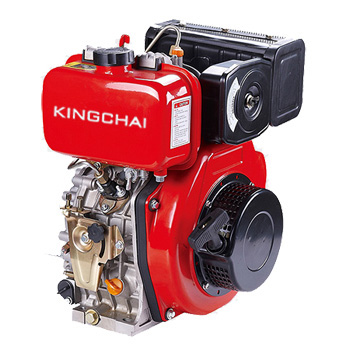

Model: KC170F
Diesel Engine
< Previous | Next >


Model KC170F
Engine Type 1-cylinder;4-stroke;Air-cooled;diesel engine
Bore x Stroke 70x55 mm
Volume 211cm3
Continue (3.8HP)2.8kw
Maximum Power Output (4.2HP)3.0KW
Speed 3600rpm
Min.Fuel Consumption 265g/Kw.h
Lubricate System Pressure fly
Cooling System Air-cooled
Starting System Recoil/Electric
Fuel Capacity 2.5L
Engine oil System Capacity 0.75L
Combustion system Direct injection
Fuel type 0#-10#-20#
Lube oil type CD Grade or SAE10w-30 SAE15w-40
Option oil bath air cleaner
Net Weight 28kg(Recoil)/33kg(Electric)
Overall dimension 420x360x460mm
